Woodworking Tool Forestry Mill Wood Flaker

Overview Wood shaving data under different parameter conditions --The proportion of flake shavings produced by the new t;

Send inquiry

Overview
Product Description
Product Parameters
Our Advantages
Application
Sun Hong Group

Overview

Basic Info.

Model NO.	Sun Hong
Type	Hot Press Machine
Automatic	Semi-Automatic
Certification	CE, ISO
Condition	New
Transport Package	Wooden Case
Specification	different type
Trademark	SUN HONG
Origin	China
HS Code	8439990000

Product Description

Wood shaving data under different parameter conditions

--The proportion of flake shavings produced by the new type of flaking machine is high, and the total quality of flake shavings reaches more than 80%. --High thickness uniformity of flakes, the total mass of flakes with thickness within the range of 0.50~1.0mm accounts for more than 80% of the total mass of sampled flakes.
The ring planer used for the preparation of ultra-strong particleboards produces large and thin flakes; the proportion of flakes that remain on the 5x5 screen after screening is more than 60 percent.

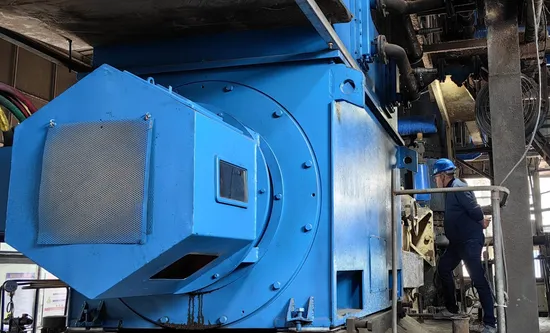

Shaving Site

Sun Hong Group is a comprehensive company integrating planning, design, technical support, production, testing and training. We have a professional technical team to provide you with professional design and technical support as well as the best source of goods. After more than ten years of efforts, our products have been exported to 96 countries, and we have more than 300 paper plants customers. Sun Hong Group has a wide range of business. We can design and produce various customized products according to the different requirements of different customers, mainly involving Forestry Machinery,Woodworking Equipment,Paper Machine Clothing, Industrial Fabric, Paper and pulp machine spare parts, test equipment, etc. We also provide customers with update and transformation services to enhance customer output.

Woodworking Tool Forestry Mill Wood Flaker

Product Description

The double-stream mill is used for milling flakes into fine flakes, which are used as surface material of the particleboard. The mill consists of base frame, ring, impeller, vibrating feeder, magnetic separator, heavy material separator etc.It can provide you lager production capacity, more uniform flakes, more energy saving, more convenient maintenance, and it is an ideal choice for large and middle scale particle board lines, can replace the imported equipment well.

Product Parameters

	BX4616/5			BX4616/6
Knife Ring Diameter (mm)	φ1660			φ1660
Knife ring speed (rpm)	50	50	50	50	50	50
Fly cutter length (mm)	448	448	448	598	598	598
Number of fly cutters (pcs)	66	66	66	66	66	66
Rotating speed of impeller body (rpm)	850	750	560	850	750	560
Number of blades (pcs)	25	19	11	25	19	11
Main motor power (kw)	315	315	355	400	400	450
Knife ring motor power (kw)	30	30	30	37	37	37
Production capacity (bd.t/h)	10-14	7-10	5-9	13-18	10-14	7-10
Heavy weight separator	with	with	without	with	with	without
Raw material length specification (mm)	≤40	40-80	≤120	≤40	40-80	≤120

Our Advantages

Application of the innovative weight separatorSafety enhancement (adapted to wood chip lengths of 80 mm and less)

Application of high precision cutter ring High precision of knife ring and assembly fit Realize the interchangeable use of knife ring of the same model
--High-precision machining of the knife ring ensures that the gap tolerance of the knife door does not exceed 0.2mm. --After assembly, the gap tolerance between the impeller blades and the flying cutter does not exceed 0.3mm.

The application of dividing disc improves production and efficiency to achieve product extension
--The front adjustable speed dividing disc evenly distributes the wood chips across the entire width of the knife ring, achieving uniform cutting, extending the service life of the fly cutter, and improving the yield and quality of shavings.

Application of integral machine base Smooth running and reduced vibration
--Stable and rigid machine base ensures the assembly and running accuracy of the knife ring impeller. --Successful application on wider type BX4616/6 ring planer.

Application

Poplar wood chips under 35mm	Dwell screen size 12X12mm		Dwell screen size >5X5mm		Dwell screen size >2X2mm		Dwell screen size <2X2mm		>5X5mm	>2X2mm
	Weight	Percentage	Weight	Percentage	Weight	Percentage	Weight	Percentage	Percentage	Percentage
	293	36.38%	223	27.69%	197.8	24.56%	91.5	11.36%	64.08%	88.64%
	269	41.85%	160.4	24.95%	139	21.62%	74.4	11.57%	66.80%	88.43%
	165	31.49%	141.4	26.98%	137.3	26.2%	80.3	15.32%	58.47%	84.68%
	170	34.96%	120.6	24.80%	116.9	24.04%	78.8	16.20%	59.76%	83.80%
	97.2	19.51%	152.4	30.58%	160.7	32.25%	88	17.66%	50.09%	82.34%

Poplar wood chips under 35mm	<0.5mm	Thickness 0.5-0.6mm	Thickness 0.6-0.7mm	Thickness 0.7-0.8mm	Thickness 0.8-0.9mm	Thickness 0.9-1mm	Thickness >1mm	0.5-1mm
	10%	12%	21%	18%	20%	10%	9%	81%
	10%	14%	22%	22%	16%	9%	8%	82%
	4%	18%	13%	21%	19%	14%	12%	84%
	1%	22%	23%	18%	14%	12%	10%	89%
	1%	17%	22%	18%	21%	11%	10%	89%

Poplar wood chips 60mm-80mm	Dwell screen size 12X12mm		Dwell screen size >5X5mm		Dwell screen size >2X2mm		Dwell screen size <2X2mm		>5X5mm	>2X2mm
	Weight	Percentage	Weight	Percentage	Weight	Percentage	Weight	Percentage	Percentage	Percentage
	252.5	40.28%	166.5	26.56%	113.3	18.07%	94.6	15.09%	66.84%	84.91%
	223.5	41.89%	108.8	20.39%	134.9	25.28%	66.4	12.44%	62.28%	87.56%
	177	30.89%	170	29.67%	120	20.94%	106	18.50%	60.56%	81.50%
	242	39.10%	144	23.26%	138	22.29%	95	15.35%	62.36%	84.65%

Poplar wood chips 80mm-100mm	Dwell screen size 12X12mm		Dwell screen size >5X5mm		Dwell screen size >2X2mm		Dwell screen size <2X2mm		>5X5mm	>2X2mm
	Weight	Percentage	Weight	Percentage	Weight	Percentage	Weight	Percentage	Percentage	Percentage
	203	35.44%	134	26.08%	179	25.49%	91	12.99%	61.52%	87.01%
	288	42.92%	125	18.63%	166	24.74%	92	13.71%	61.55%	86.29%
	254	49.80%	113	22.16%	87	17.06%	56	10.98%	71.96%	89.02%
	250	44.56%	119	21.21%	95	16.93%	97	17.29%	65.78%	82.71%
